Description
IM2000 Self Spotting Machine
The Ironmaster IM2000 Self-Spotting Machine is the culmination of a decades-long process of designing a multi-functional gym machine that is compact, long-lasting, and easy to use.
Patterned after the traditional Smith machine but with notable improvements over its forerunner, the IM2000 allows you to do a wide range of exercises to target all your muscle groups without taking up a lot of space.
This is the latest model of the Ironmaster machine and while it has many improvements over older models, it still has the core design features that makes it so amazing to have in your gym. Our unique and patented quick-lock guided barbell system guarantees its smooth operation, long service life, and most importantly, your safety.
Extremely safe
With the IM2000 Self-Spotting Machine, you can train each body part in at least three different ways safely. It is packed with safety features like lockout holes that are accurately measured and placed at close intervals so you can have the confidence to work out on your own.
- Perform presses and squats alone without worrying about your safety.
- The lockout holes are only 1.7 inches apart to ensure that you won't get stuck while working out alone.
- Heavy-duty springs provide additional support for the lifting bar.
- Secondary safety stops offer added protection as well as limit the range of the cable system.
- This machine allows you to reach your maximum muscle failure without increasing your risk for injury.
Multi-functional and complete
You can target each body part in different ways using this versatile machine and the several attachments that are compatible with it. The IM2000 is the perfect self-spotting weight lifting system for any home gym owner who prefers doing full-body workouts.
- Train your shoulders, chest, back, arms, legs and core with this all-around training system.
- Perform a variety of exercises to target different body parts using the several attachments that you can connect to this self-spotting machine. (See the IM2000 poster for some of the exercises you can do with it.)
- You will find there almost unlimited ways to use this system.
Heavy-duty and long-lasting
The IM2000 Self-Spotting Machine is made of superior quality, commercial-grade materials and has a high weight load capacity for its lifting bar and cable system. Our unique patented design for its slide rails prevents friction and premature wear.
- The frame is constructed from 11 gauge structural steel.
- The lifting bar is rated for 1,000 lbs.
- The cable system is rated for 350 lbs.
- Our unique slide bushing and slide rail system do not require constant lubrication with grease. This means less mess and dirt sticking to your machine, which leads to premature deterioration.
- Unlike other multi-functional machines and designs that use plastic bushings, we use a special polymer bushing to ensure a smooth sliding action over our specially coated slide rails made of compatible materials.
- Our patented design for the IM2000 has proven its ability to perform smoothly and stand the test of time in schools, police and fire departments and commercial and home gyms around the world.
Space-efficient and relatively lightweight
The IM2000 Self-Spotting Machine was developed to give you optimum workout capabilities while occupying a relatively small footprint and weighing relatively less than commercial gym equipment. This is why it's perfect for home gyms or personal use.

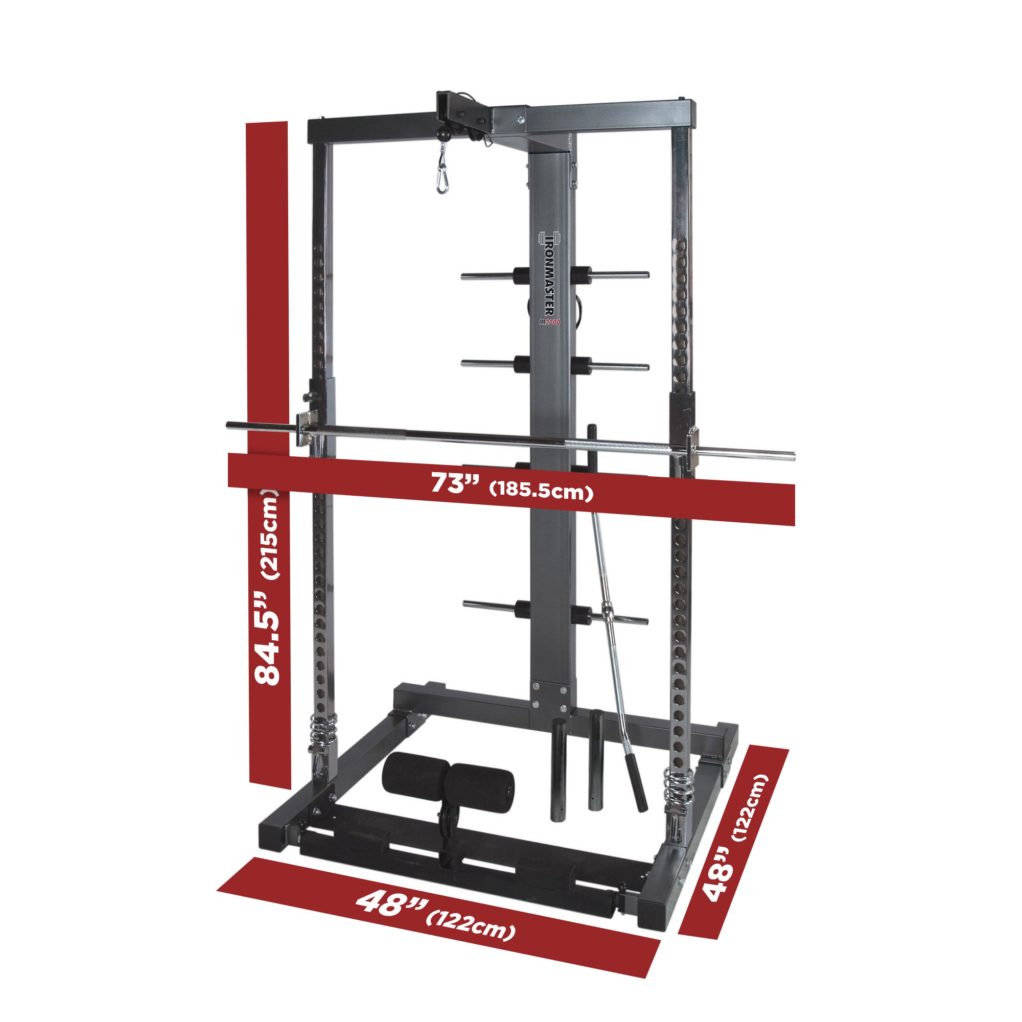

- Frame dimensions are 48 inches wide x 48 inches deep, x 84.5 inches high.
- The lifting bar is 73 inches wide. It weighs 36 lbs with the Olympic Sleeve Adapters and 32 lbs without them. The grip width area of the bar is 42 inches and 1.25" diameter.
- We recommend allotting a floor space of 7 feet wide x 5-6 feet deep and a ceiling height of at least 87 inches for assembly clearance and use. (Note: you will need more height with the optional Ultimate Chin Up). If you have any questions regarding ceiling clearance, please contact Customer Service.
Ergonomically designed
The ergonomic design of the IM2000 Self-Spotting Machine allows you to perform exercises more effectively and naturally. With a simple modification of its parts, you can do a completely different set of exercises that target other parts of your body.
- The ergonomic lifting bar locks out to the front instead of to the back for a faster and more natural movement, making it easy to switch to heavier weights when doing press exercises like the bench press.
- The construction of the high/low pulley system that makes use of the weight carriage offers a smoother, more comfortable and free-flowing movement.
- The low pulley device has wheels that allow it to easily swing into place.
Budget-friendly
Using the base frame of the IM2000 Self-Spotting System as your foundation, you can build your own custom exercise machine by adding other attachments and accessories. This offers bigger savings compared to purchasing several different cages and machines or getting a membership at a commercial gym.
Easy to assemble
Apart from that, this machine comes with an assembly guide and hardware kit for easier installation.
- You only need two adjustable wrenches to put all the parts together.
- Your purchase includes a hardware kit that contains all the other tools you will need to set up your IM2000.
- Assembly and operating instructions are included.
Notes:
- The IM2000 Self-Spotting Machine is only the base model. The Super Bench, weights and other attachments shown in the photos are not included. They are sold separately and available for purchase in custom packages.
- Base unit includes the following:
- main frame
- lifting bar with Olympic adapters (for use with both standard and Olympic weight plates)
- standard plate holders
- lat pull bar
- upper and lower pulley/cable system
- Please allocate 2 weeks for shipping. This Ironmaster product is usually delivered via truck for the lower 48 US states. Please contact us if you want it delivered in other destinations.
Take a look at this sample workout routine for the IM2000 Home Gym: IM2000 2 Day Split Workout
Here is a full video walkthrough of the IM2000 and it's core features:
Reviews
Years a ago I owned a linear bearing smith machine and recently decided to get a new one. I was a little skeptical of the IM2000 but since all of the other Ironmaster equipment I have is top notch I decided to give it try. Is it really smooth? YES! So glad I didn't get another linear bearing smith as this one is perfect. Besides the smooth operation and low maintenance, I really lke that the lockout holes are so closely spaced. I definitely recommend the IM2000.
Overall, this is a great piece of equipment.
The action is very smooth as others have mentioned. I have yet to find the perfect way to string up the upper cable when not in use but it is out of the way. Quality is top notch. I have yet to use some of the attachments but look forward to it (especially the leg press plate). I am certain this will provide service throughout the rest of my days and easily outlive me. Stupid easy to recommend, especially when on sale!
Then COVID came, and I soon realized the wisdom she had (and had a few I told-you-so moments as well lol). It took a while, but once I was able to get my hands on the IM-2000, I quit my gym and embraced the garage gym life.
Quite frankly, it is so much better.
First off, I was able to assemble the IM-2000 by myself in a couple of hours. It is well engineered, and the instructions are very easy to follow. It would definitely be easier with two people, but it is manageable even alone with some creativity. The cage itself is super efficient. It has just about everything you would need, high and low cable pulleys, integrated weight racks, smith machine, spotting arms, J cups, pull up bars, band attachments, land mine attachment, and a few more things I'm missing.
It's been a few months for me now, and I'm loving it. I have used every part of the IM-2000 (I got just about every add-on), and they all work wonderfully well. I had some heavy lifts to failure that the spotting arms did their job well with no problems and earned their keep. Smith machine portion of the IM-2000 works great as a calf raise machine. Pull ups, dips, lat pull downs, rows, all work smoothly. Switching out attachments is quick and easy.
I have found working out at home to save me a lot of time, and I haven't had to compromise my workouts in the slightest thanks to the ingenuity of the Ironmaster team. The fact that they fit so much functionality in such a small footprint with top quality construction, great pricing, and quick delivery is amazing. Thank you!
Key points:
- straight forward assembly
- extremely stable with nice solid components
- minimal yet adequate foot print
- smooth bushing action and easy disengagement of the carriage hooks
- smooth cable system
- nice recoil springs to eliminate major noise when lowering the bar or to provide a spot
All and all very well thought out Minimalist approach to home gym system with commercial grade components.
Strongly recommend to anyone looking to forego or to supplement to their commercial gym membership!
Assembly was straightforward and only two sections required a second set of hands. My assembly went quickly as I had a socket set and cordless impact driver. Probably took me well under two hours, I think I spent more time moving the boxes and unpacking the parts. Given the lengthy supply chain if you decide to go with this machine order all the accessories you can. The only thing missing now is the pull up attachment and a set of adjustable dumbbells.
The only improvement I could suggest is a set of stickers to mark where the safety stops should go. I ended up using yellow electrical tape just to make changeovers between my spouse and I quicker. Definitely worth it.
1. If you ordered the "Ultimate Chin Up attachment" please read the installation instructions for it first, this attachment comes with its own set of bolts that you use to connect to the IM2000, this will save you 10 minutes of bolting and unbolting.
2. The base of the IM2000 has two main arms, both are labeled R and L, mine for whatever reason were switched. The best way to differentiate them apart "big hole is supposed to be on the bottom, small hole is supposed to be on the top" if you mix them up, you'll have a hard time attaching the uprights. Luckily I didn't run into that issue and somehow at 10:00PM saw the small fine print which made notes of the difference.
Otherwise, this is one SOLID piece of machinery, easy to put together and well worth the 3 months wait.
The IM2000 does a lot despite its sturdy 4x4 footprint. It will hold all of your weights, give you a high and low pulley, work as a free bar half rack, leg press, dip station, pec dec, and of course, a smith machine. It does all of these things well and with few compromises too. Elsewhere, they have some really nice units you can get that do some of the things this does, they cost many orders of magnitude more, they don�t hold your weights, and they tend to be bigger than my entire apartment. They�re also really convoluted in their construction and have a bunch of moving parts that can and do break, needing regularly and costly replacement. The only thing on this that can break is me when I�m using it. I�ve met people with the older units that have the same basic mechanisms to them, and they work just as well now as when they got them some 20-30 years ago. That�s why they give you a lifetime warranty: you won�t use it.
If you get the free bar attachments and spotting arms, as a half rack, this thing is also solid. Nothing like the cheap stuff you�ll find in a sporting goods store. You can even bolt it down if you want the extra support, but I�ve found no need, even when racking and unracking over 400lbs.
I like the high and low pulleys better than those I�ve found in any gym I�ve been to, largely because they give 1:1 resistance for the weight you put on there, and they�re rated for 350lbs. Most cables machines in a gym have you lifting a fraction of what�s listed on the weight stacks, which tend to only go up to 200lbs at that. I�m a strong guy, and I will never max out the weight I can put on this cable for any exercise. My only complaint is that the lifting bar weighs 30lbs, making that the lowest weight you can use on a pulley, but I found easy ways around that. If you have a small weight plate with a handle opening on it, you can easily place the hook that normally goes around the lifting bar through that. Additionally, if you have the Quicklock dumbbells, you can place the hook around the handle there, and it works just as well. You have to be careful not to let it go too low and hit the bar, but you�d only be doing this for 2 to 27.5 lbs, so it�s not an issue.
The smith machine is also great, has no moving parts or bearings to break, and glides like glass if you keep it lubed. It�s also easier to lock and unlock than a commercial smith machine, and has a wider array of heights to do that at.
I�ve had mine for a while now, and I really love it. It works as well as the day I got it. I mostly wish I�d gotten it sooner. On its own, it�s a solid unit. With some cheap accessories like the free bar holders, leg press plate, or pull-up attachment, it�s suddenly a 4x4 fully featured gym. Be sure to get the dumbbells and bench too. Mine�s fully decked out and I have no regrets, only gains. This is one of the greatest purchases I�ve ever made, next to buying a dog.
1) bar hooks
2) spotting arms
3) dip handles
4) ultimate chin-up bar
I spent more than I wanted but worth every penny. I really enjoy the fact that not only is it a machine but buying the spotting arms and bar hooks it�s a free weight rack too. The IM 2000 feels exactly like free weights so if your bench pressing 270 with free weights it will be exactly that with the IM 2000, it�s a wonderful design that no other machine can match, I�m a very happy customer thank you IronMaster.
This equipment is a thing of beauty. My wife (who doesn't lift and never did, although she's athletic, a skier, yoga, etc.) came back from an overseas trip today (she missed the delivery, the install, and the cleanup) to find all this neatly set up and ready to go, including the alien-looking organizer w/ all the attachments hanging on it, and said, "It looks fantastic". It does.
